unknown
AF1-048.3-65E16
Teekay Couplings

Teekay Axiflex Coupling Above Ground Type 1

£58.60 Ex VAT

( £70.32Inc VAT )

Estimated lead-time 5-7 working days.
0
WISHLIST
Wishlist
Add to wishlist Added to wishlist (0)
  • Industry leading Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK. Industry leading
    Our sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK.
  • Expert advice Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection. Expert advice
    Our friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection.
  • Nationwide delivery Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you. Nationwide delivery
    Our delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you.
  • Premium quality Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality. Premium quality
    Our aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality.

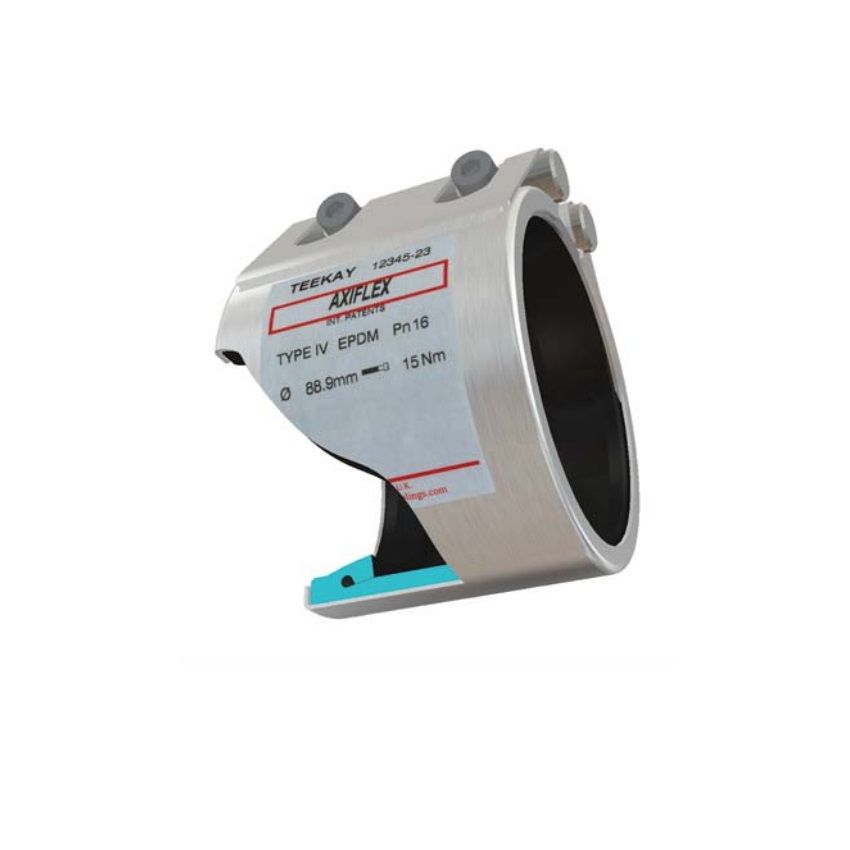

Teekay Axiflex Couplings, with EPDM Gasket, used to connect plain ended pipes, in pressurised applications above ground (INTERNAL USE ONLY). Does not include anchor rings, which means another method must be used to prevent the pipes pushing or pulling apart.

The Teekay Axiflex is a high performance coupling that allows generous pipe angulation and expansion/contraction. The Axiflex is a popular choice of coupling with water authorities, civil engineers and building contractors and is available in sizes up to 4.2m in diameter. The stainless steel and high strength steel designs ensure significant weight savings are achieved over cast iron couplings. The result is less manpower, quicker installation times and massive cost savings.

Teekay Axiflex does not contain anchor rings and therefore allows for greater expansion and contraction. The pipes should be restrained to prevent them from pushing or pulling apart. Therefore diameters up to 4 metres are possible with this design. The coupling can be placed over the pipe ends or supplied in a wrap - around version.

Casing: AISI 304 / DIN 1.4301

Fasteners: Alloy Steel, Coated

Gasket: EPDM/NBR/H-NBR/FKM/VMQ

Manufacturer: Teekay
