BG Graspointner BG-FLEX TM® Terrace Channel With Linear Grate X 1m Length
Estimated lead-time 10-12 working days.
-
Industry leadingOur sales and technical team have over 20 years’ experience working with the industry leading rainwater systems available in the UK.
-
Expert adviceOur friendly service and competitive prices combined with a step-by-step support approach, make for easy rainwater product selection.
-
Nationwide deliveryOur delivery partners cover the whole of the UK (mainland only) so no matter where you are, we can get your order to you.
-
Premium qualityOur aluminium, steel, cast iron, plastic & GRP rainwater systems are all sourced from the leading manufacturers in the UK to ensure they are of the highest quality.

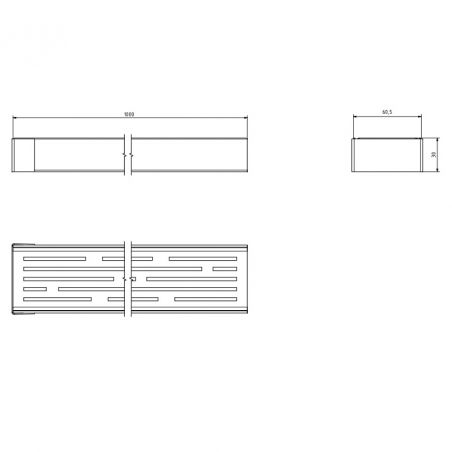

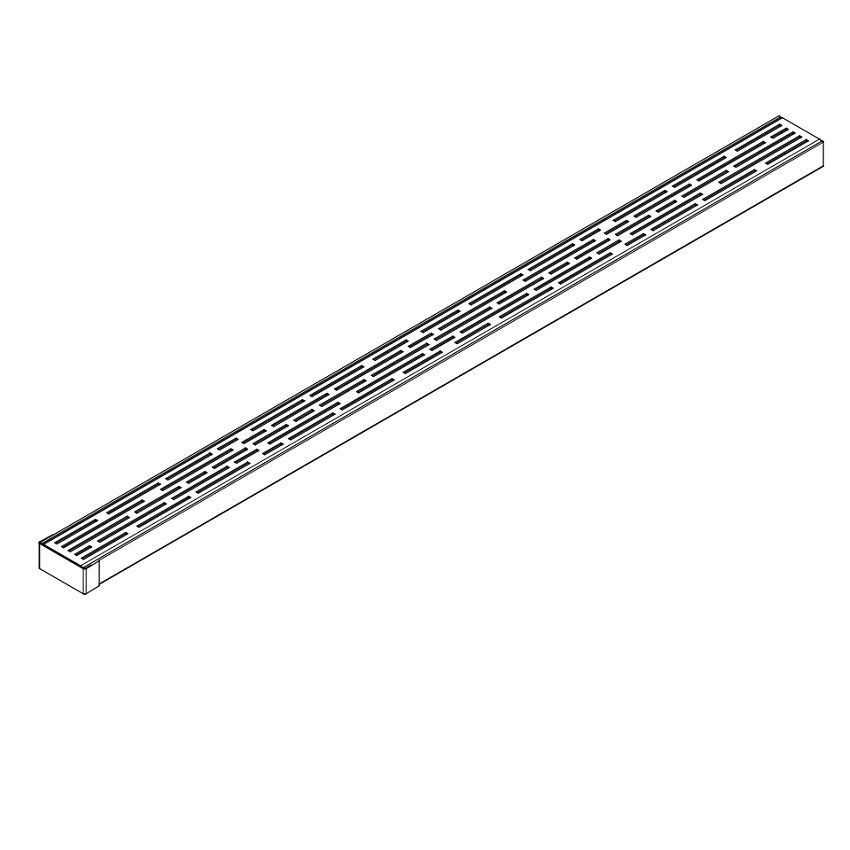

BG Graspointner BG-Flex TM Terrace Channel with Linear Stainless Steel Grating X 1m Length, 60mm wide x 30mm high.
The BG-TM terrace channel’s narrow width of just 60 mm gives it an inconspicuous elegance that is ideal for terraces and garden areas. They can be laid simultaneously with the terrace plates.
Application areas
Ideal for laying on terraces in combination with tile coverings. Quick-and-easy installation makes this system an excellent choice for both contractors and DIY users.
Channel cover
Made with a U-profile, the channel cover is simply inserted into the channel body. A protective film is provided against damage while construction is ongoing
Element height
The element’s low height of 30 mm is excellently suited for laying in a terrace surface covering.
Material
The channels are made of stainless steel grade 304
Material thicknesses:
Channel body: 0.75 mm
Cover: 1.5 mm
Channel body with outlet
Channel bodies with a DN 50 bottom outlet are also available
Front/connecting cap
A U-shaped piece can function as a transition plate to prevent shifting at the rebated joint, and also as a cap at the end of the channel line.
Discreet look
The 60 mm channel width lends an inconspicuous elegance.
Manufacturer: BG-Graspointner
Product Code: 21106305
